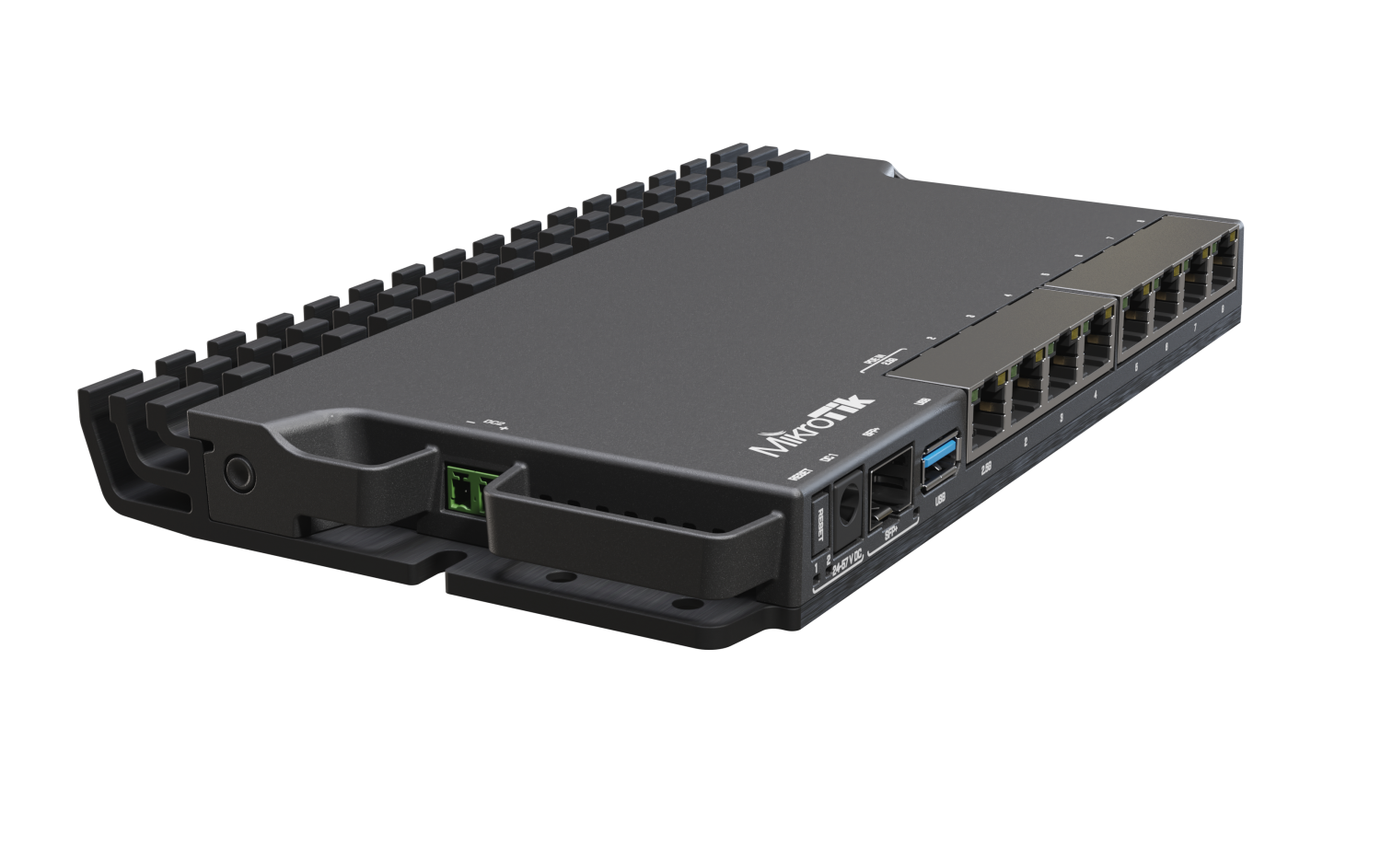

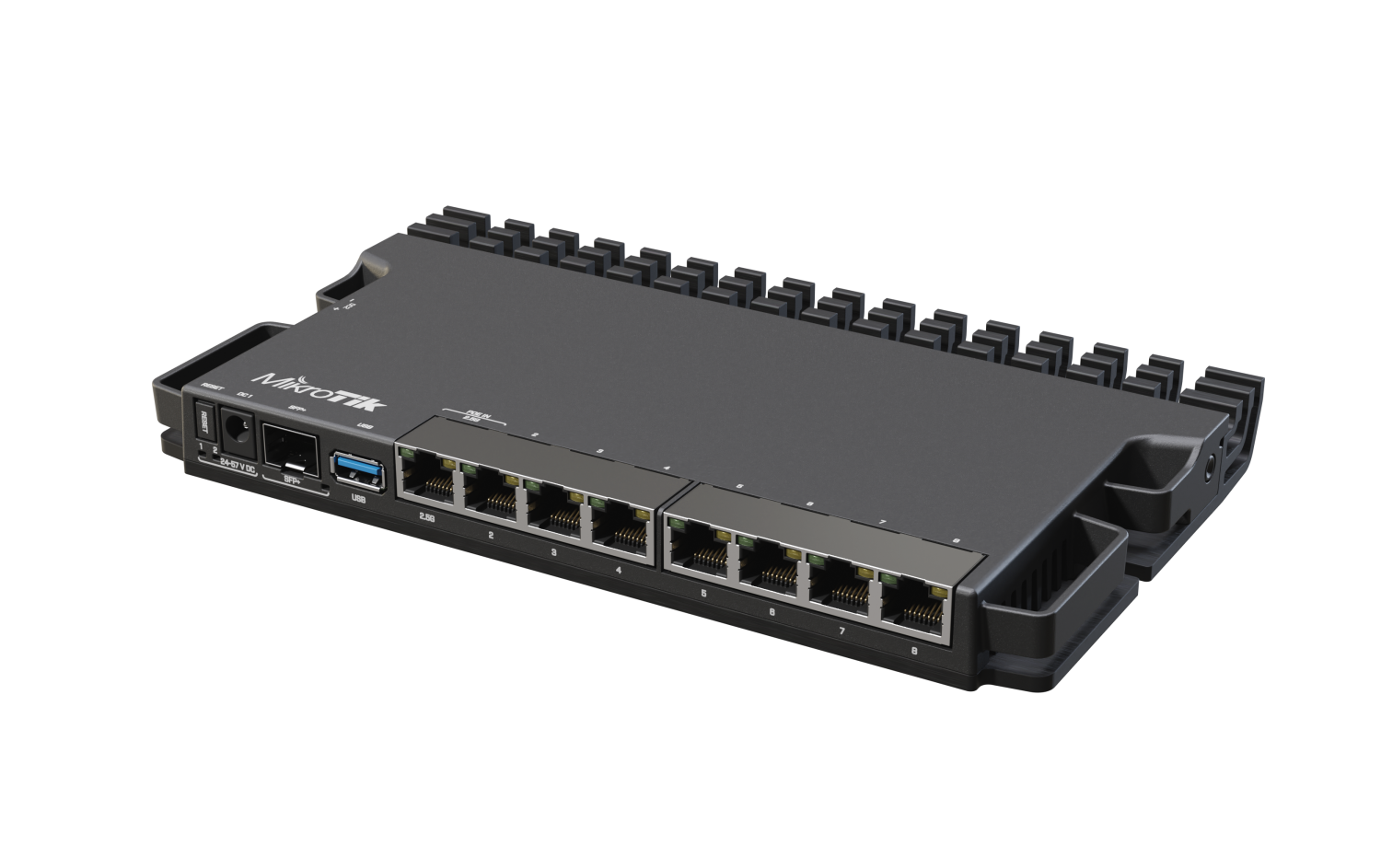

Mikrotik Rb5009ug+s+in 2.5g + Gigabit Wired Router

Specifications for MikroTik RB5009UG+S+IN 2.5G + Gigabit Wired Router

• Model: MikroTik RB5009UG+S+IN
• CPU: Quad-core ARM 1.4 GHz
• RAM: 1 GB
• Storage: 1 x 1GB NAND
• Operating System: RouterOS v7 (License Level 5)
• Ethernet Ports: 7 × 10/100/1000 Mbps
• Combo Port: 1 × 2.5G Ethernet (RJ45)
• SFP+ Port: 1 × 10G SFP+
• USB Port: 1 × USB 3.0 Type-A
• PoE-In: Yes, Passive PoE and 802.3af/at
• PoE-Out: No
• Power Input: 24–57V DC (jack and PoE-in)
• Dimensions: 220 x 125 x 22 mm
• Mounting: Desktop / Wall
• Color: Black
• Operating Temperature: -40°C to +60°C
• Cooling: Passive (Fanless)

HIGH-SPEED CONNECTIVITY IN MIKROTIK RB5009UG+S+IN WIRED ROUTER

The MIKROTIK RB5009UG+S+IN WIRED ROUTER is engineered for speed and efficiency. With a dedicated 2.5 Gigabit Ethernet port, this model provides faster-than-Gigabit throughput for uplinks, high-speed NAS devices, or multi-gig switches.

Its 10G SFP+ port allows seamless fiber connectivity, perfect for modern setups where both wired and optical performance are critical.

ROBUST PERFORMANCE FROM MIKROTIK RB5009UG+S+IN WIRED ROUTER

At the core of the MIKROTIK RB5009UG+S+IN WIRED ROUTER is a powerful quad-core 1.4 GHz ARM CPU, paired with 1 GB of RAM, enabling it to handle intense routing, firewall, and VPN loads without breaking a sweat.

This makes the MIKROTIK RB5009UG+S+IN WIRED ROUTER a top choice for small businesses, home labs, and ISP edge networks demanding speed, flexibility, and reliability.

MULTI-PORT CONNECTIVITY ON MIKROTIK RB5009UG+S+IN WIRED ROUTER

This model includes:

• 7 x Gigabit Ethernet ports for LAN devices
• 1 x 2.5G Ethernet port for high-speed uplink
• 1 x SFP+ 10G port for fiber connections
• 1 x USB 3.0 port for LTE modems or storage

The MIKROTIK RB5009UG+S+IN WIRED ROUTER is versatile, giving you options for WAN failover, media sharing, or LTE redundancy.

ADVANCED ROUTING WITH MIKROTIK RB5009UG+S+IN WIRED ROUTER AND ROUTEROS V7

Loaded with RouterOS v7 and a Level 5 license, the MIKROTIK RB5009UG+S+IN WIRED ROUTER supports advanced networking functions:

• Static and dynamic routing (IPv4/IPv6)

• VLAN tagging and bridging

• Layer 3 firewall and NAT

• IPsec, L2TP, OpenVPN, and WireGuard VPN

• Traffic shaping, queue trees, and bandwidth control

• Routing protocols: OSPF, BGP, RIP

• DHCP server, relay, and PPPoE termination

These features make the MIKROTIK RB5009UG+S+IN WIRED ROUTER ideal for high-demand environments requiring advanced configuration and robust security.

SLEEK DESIGN AND BUILD QUALITY OF MIKROTIK RB5009UG+S+IN WIRED ROUTER

The MIKROTIK RB5009UG+S+IN WIRED ROUTER comes in a solid matte black metal housing that is both stylish and thermally efficient. It’s fanless, which means silent operation—perfect for offices, labs, or home racks.

Its compact dimensions (220mm x 125mm x 22mm) allow it to sit on a desk, shelf, or wall-mount bracket without taking up excess space.

FLEXIBLE POWER OPTIONS FOR MIKROTIK RB5009UG+S+IN WIRED ROUTER

Powering the MIKROTIK RB5009UG+S+IN WIRED ROUTER is simple and flexible:

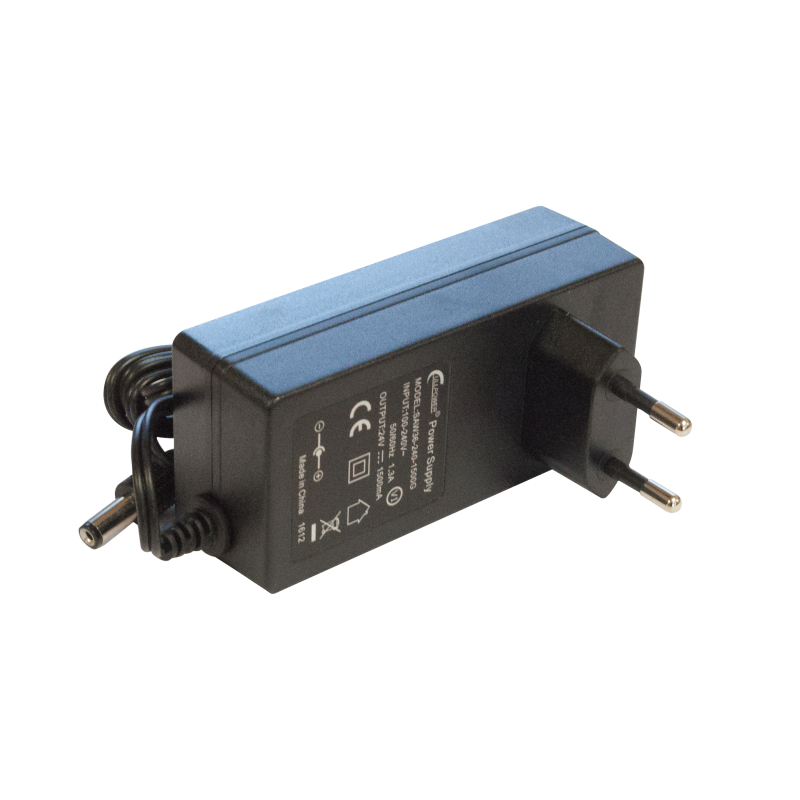

• Accepts power via DC jack (24–57V)

• Supports PoE-in on Ethernet port 1 via 802.3af/at or passive PoE

This dual method makes it ideal for different deployment scenarios, especially where backup power or UPS support is critical.

USE CASES FOR MIKROTIK RB5009UG+S+IN WIRED ROUTER

The MIKROTIK RB5009UG+S+IN WIRED ROUTER is built for users who demand serious wired performance in a small footprint. Typical applications include:

• Home labs and prosumer setups

• Branch office routers

• ISP-managed CPE

• Media production studios needing 2.5G or 10G transfer

• Smart offices and IT test benches

With fiber, 2.5G, and USB, the MIKROTIK RB5009UG+S+IN WIRED ROUTER gives you the flexibility to build forward-thinking wired networks.

WHY CHOOSE THE MIKROTIK RB5009UG+S+IN WIRED ROUTER?

• 2.5G Ethernet and 10G SFP+ for future-proof connectivity

• 7 Gigabit ports for core LAN distribution

• Quad-core CPU and 1GB RAM for powerful routing
• Preloaded RouterOS v7 with L5 features

• Compact, black metal enclosure for silent operation

• USB 3.0 for LTE backup or file sharing

• Wide voltage support with dual power inputs

• Perfect for SMB, labs, and advanced home networks

• Advanced firewall, VPN, and VLAN support

• Backed by MikroTik reliability and community
