Crs317-1g-16s+rm Mikrotik 16-port Sfp+ Smart Switch

Specifications for CRS317-1G-16S+RM MikroTik 16-Port SFP+ Smart Switch

• Model: CRS317-1G-16S+RM
• Switch Type: Layer 3 Smart Switch
• Ports: 16 × 10G SFP+, 1 × 1G Ethernet
• CPU: 800 MHz Dual-Core
• RAM: 1 GB
• Operating Systems: RouterOS or SwitchOS (Dual boot)
• Storage: 16 MB Flash
• Form Factor: 1U Rackmount
• Power Supply: Dual redundant internal PSU
• Cooling: Dual fans (active cooling)
• Dimensions: 443 × 224 × 44 mm
• Operating Temperature: -20°C to +60°C
• License Level: RouterOS Level 6
• Mounting: Rackmount ears included

ULTRA-FAST CONNECTIVITY IN CRS317-1G-16S+RM MIKROTIK SMART SWITCH

The CRS317-1G-16S+RM MIKROTIK SMART SWITCH is built for speed, offering 16× SFP+ 10G ports for high-throughput fiber connectivity. This makes it ideal for data centers, ISP networks, or enterprise environments that require fast, stable, and scalable connections.

In addition, it includes 1× 1G Ethernet port, perfect for management access or integration with traditional copper infrastructure.

POWERFUL SWITCHING IN CRS317-1G-16S+RM MIKROTIK SMART SWITCH

The CRS317-1G-16S+RM MIKROTIK SMART SWITCH delivers enterprise-grade performance with its dual-core 800 MHz CPU and 1 GB of RAM, supporting both RouterOS and SwitchOS via dual-boot.

• SwitchOS mode: Optimized for fast Layer 2 switching
• RouterOS mode: Offers Layer 3 features like routing, firewall, and VPN

With both options available, the CRS317-1G-16S+RM MIKROTIK SMART SWITCH provides flexibility for advanced network setups.

FLEXIBLE FIBER OPTIONS IN CRS317-1G-16S+RM MIKROTIK SMART SWITCH

All 16 ports of the CRS317-1G-16S+RM MIKROTIK SMART SWITCH are SFP+ and support:

• 1G and 10G SFP/SFP+ modules
• Direct attach cables (DAC)
• Long-range or short-range fiber transceivers

This versatility allows seamless integration with a wide variety of network equipment and fiber topologies.

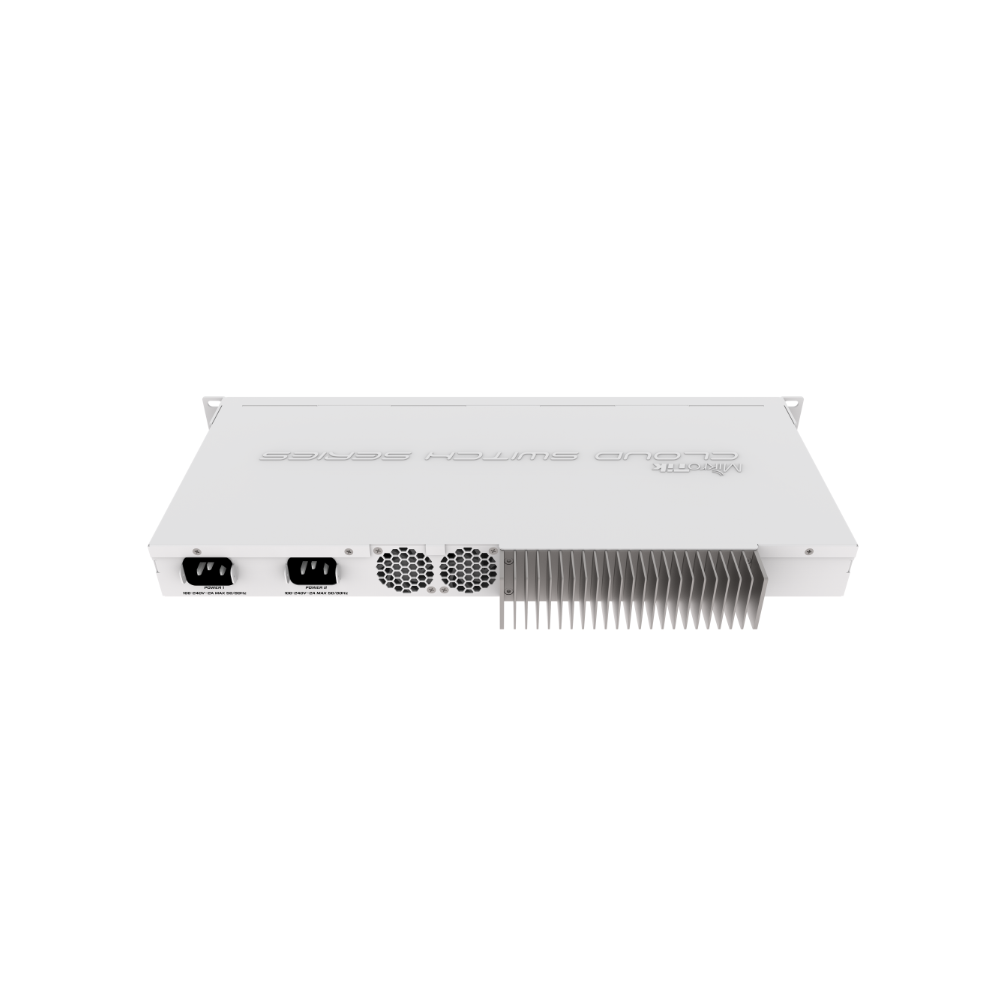

ROBUST HARDWARE DESIGN OF CRS317-1G-16S+RM MIKROTIK SMART SWITCH

Housed in a sturdy 1U rackmount metal chassis, the CRS317-1G-16S+RM MIKROTIK SMART SWITCH features:

• Dual internal power supplies for failover protection
• Two cooling fans for reliable thermal management
• Metal case designed for long-term durability

This hardware makes the CRS317-1G-16S+RM MIKROTIK SMART SWITCH a trusted backbone switch for mission-critical deployments.

ADVANCED FEATURES IN CRS317-1G-16S+RM MIKROTIK SMART SWITCH

With RouterOS Level 6, the CRS317-1G-16S+RM MIKROTIK SMART SWITCH supports advanced features:

• VLANs (802.1Q, QinQ)

• Static routing and limited Layer 3 functionality

• Traffic filtering and port isolation

• Link aggregation (LACP)

• Spanning Tree Protocol (STP, RSTP)

• IGMP Snooping

• DHCP relay and monitoring tools

These features help the CRS317-1G-16S+RM MIKROTIK SMART SWITCH operate as more than just a switch—it becomes a complete network controller.

MANAGEMENT ACCESS IN CRS317-1G-16S+RM MIKROTIK SMART SWITCH

The CRS317-1G-16S+RM MIKROTIK SMART SWITCH can be managed via:

• Winbox or WebFig (GUI)

• CLI via SSH or console

• SNMP and API access

With RouterOS or SwitchOS, users can choose the interface that fits their workflow best, from beginners to network professionals.

IDEAL DEPLOYMENTS FOR CRS317-1G-16S+RM MIKROTIK SMART SWITCH

The CRS317-1G-16S+RM MIKROTIK SMART SWITCH is ideal for:

• Fiber aggregation at the core or distribution layer

• ISP POPs and data centers

• High-speed office or campus networks

• Network labs and enterprise server environments

• Replacing aging or expensive managed switches

• It provides full 10G fiber switching without breaking the budget.

WHY CHOOSE CRS317-1G-16S+RM MIKROTIK SMART SWITCH?

• 16 SFP+ ports for blazing 10G connectivity

• 1G Ethernet port for local management

• Dual OS (RouterOS + SwitchOS) for versatile use

• Layer 2 & light Layer 3 features

• Dual power supply for reliability

• Active cooling with dual fans

• Compact 1U rackmount design

• Affordable 10G switching from MikroTik

• Backed by RouterOS Level 6 license

• Compatible with a wide range of SFP/SFP+ modules
