Yololiv Yolobox Extreme – All-in-one Livestreaming Studio

Specifications – YoloLiv YoloBox Extreme

.Device Type: All-in-one livestreaming encoder, monitor, switcher, and recorder

.Display: 8-inch touchscreen (1920 × 1200), 400 nits brightness

.Input Ports:

3 × HDMI (video input)

1 × USB (video input)

1 × SD card (media or graphics)

1 × Ethernet

1 × SIM card slot (4G LTE)

.Output Ports:

1 × HDMI out

1 × USB-C for power/data

3.5mm audio out

.Audio Inputs:

1 × Line-in

1 × Mic-in

.Streaming Protocols: RTMP(s) to YouTube, Facebook, Twitch, custom RTMP

.Video Resolution: Up to 1080p60 (input & output)

.Processor: Qualcomm 660 (Octa-core)

.Storage: Internal & SD card (for media and recording)

.Battery: Built-in 10,000mAh battery (up to 6+ hours of use)

.Weight: Approx. 735g

.Connectivity: Wi-Fi, 4G LTE (with SIM), Ethernet

.Software Features:

.Picture-in-picture (PIP), lower thirds, scoreboard, countdown, multi-view

.Overlay graphics and logos

.Comment display from YouTube/Facebook

.Audio mixing & sync tools

YoloLiv YoloBox Extreme – Stream Anywhere, Control Everything

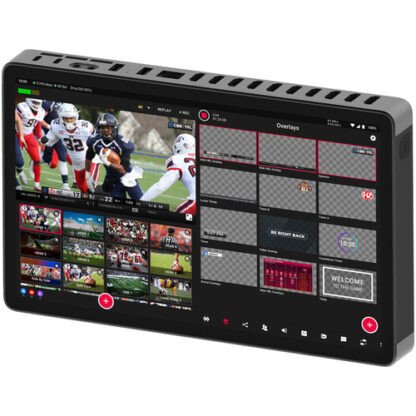

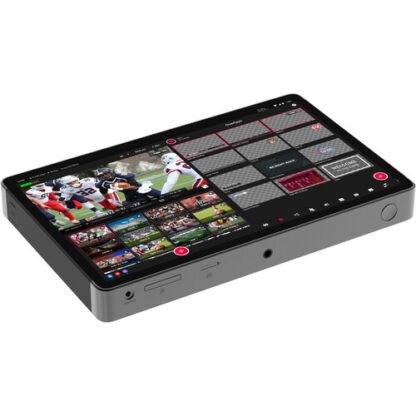

The YoloBox Extreme from YoloLiv is a revolutionary all-in-one multi-camera live streaming system, combining the functionality of a streaming encoder, video switcher, recorder, and monitor—all inside a rugged 8-inch touchscreen tablet. Designed for creators and broadcasters on the go, it simplifies livestream production while offering pro-level features in a portable device.

YoloBox Extreme – Powerful Multi-Cam Switching at Your Fingertips

With support for up to 4 video sources (3 HDMI, 1 USB), plus graphics from an SD card, you can produce engaging livestreams with picture-in-picture, split views, and multi-angle storytelling. Switching between inputs is as simple as tapping the screen—no need for a laptop or external mixer.

YoloBox Extreme – Stream Directly to Major Platforms

Go live directly to YouTube, Facebook, Twitch, or a custom RTMP server—simultaneously. Built-in Wi-Fi, 4G LTE (via SIM), and Ethernet options ensure reliable streaming from almost anywhere, whether in a studio or at a remote event.

YoloBox Extreme – High-Definition Streaming & Recording

With support for 1080p60 input and output, your livestreams look sharp and professional. You can also record directly to an SD card, capturing a clean version of your broadcast for editing, reposting, or archiving.

YoloBox Extreme – Pro Tools Built Right In

Overlay custom graphics, scoreboards, lower-thirds, and even viewer comments during your live broadcast—all without needing a computer. It’s like having OBS, a video mixer, and a camera monitor in one.

YoloBox Extreme – Built-In Audio Mixer and Sync

Bring in microphones or external audio mixers using the mic-in or line-in ports. The built-in audio mixer gives you control over multiple input levels and audio delay adjustments, ensuring everything stays in sync.

YoloBox Extreme – Long Battery Life and Durable Build

Equipped with a massive 10,000mAh battery, the YoloBox Extreme runs for up to 6 hours of continuous production. Its solid chassis and bright 8” touchscreen make it ideal for field work, event coverage, houses of worship, sports, education, and mobile production teams.
