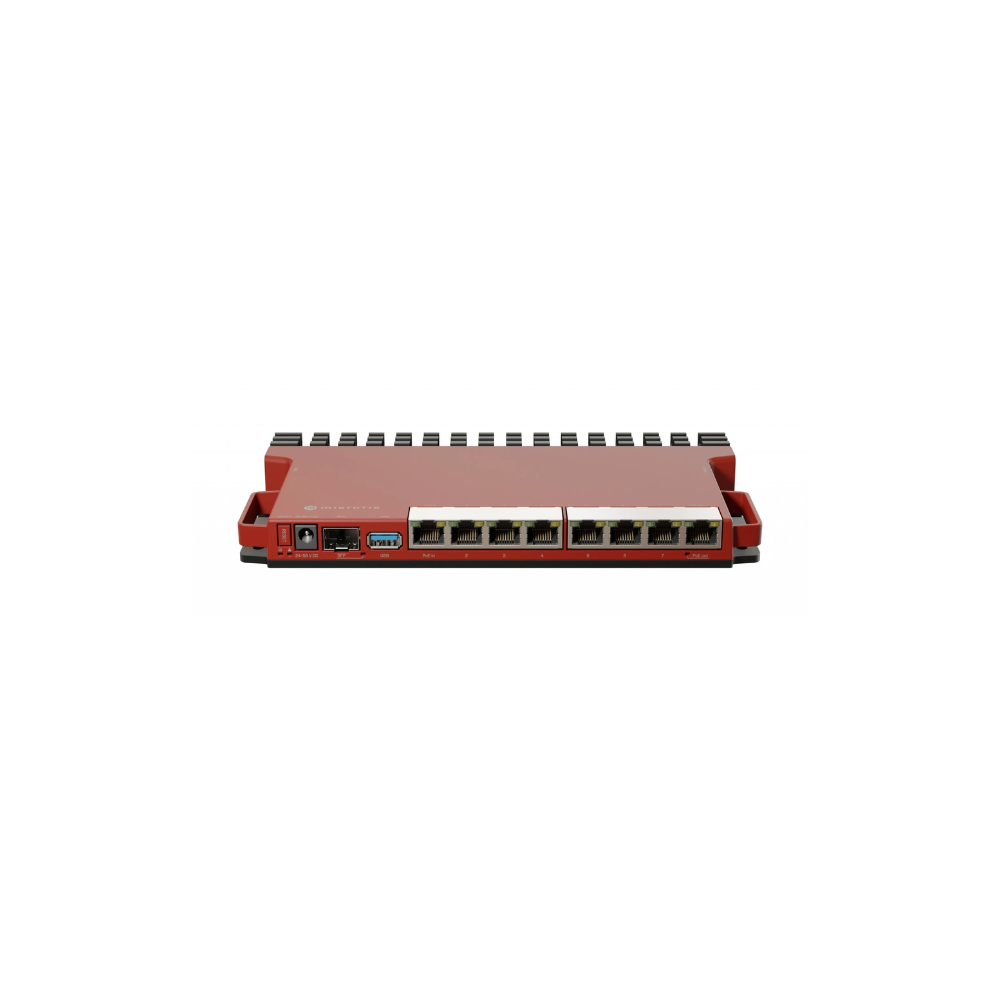

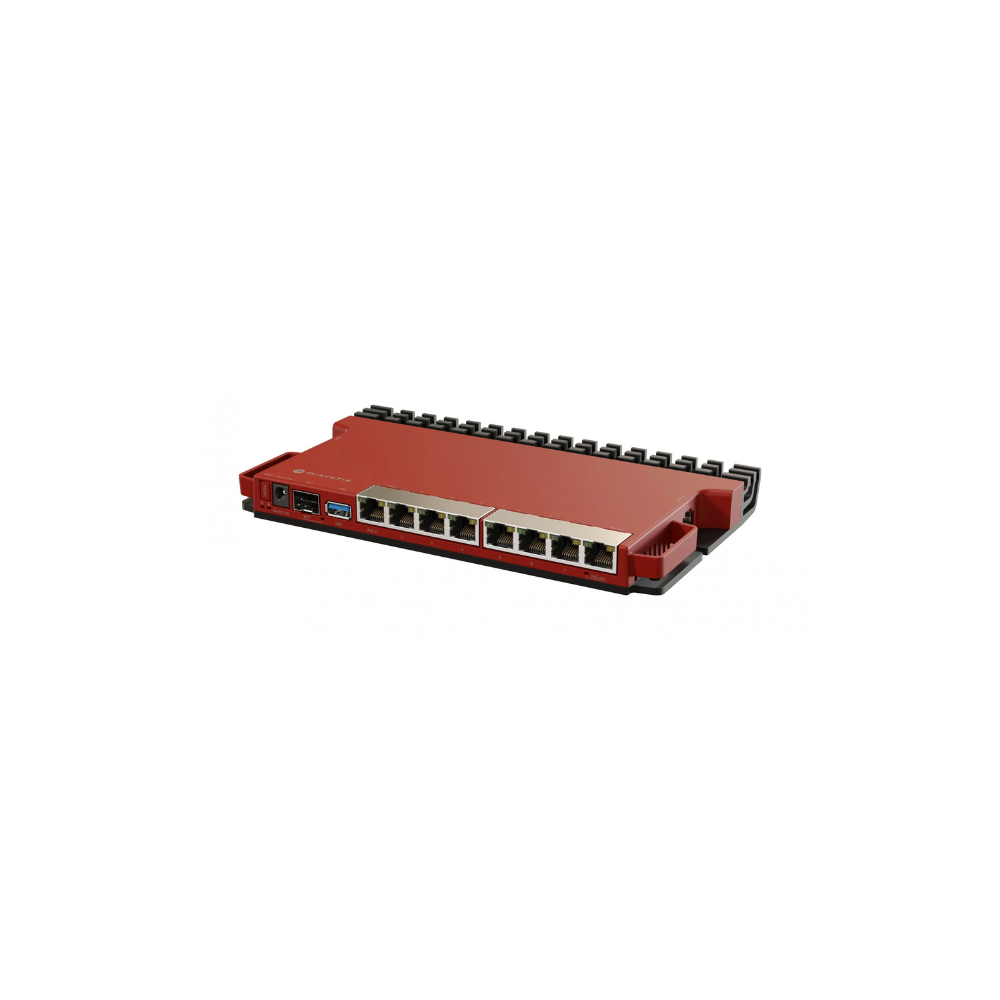

Mikrotik L009uigs-rm Wired Router 2.5g + Gigabit Ethernet

Specifications For MikroTik L009UiGS-RM Wired Router 2.5G + Gigabit Ethernet

• Model: MikroTik L009UiGS-RM
• Form Factor: Desktop/Rackmount (1U)
• CPU: Dual-core 880 MHz
• RAM: 512 MB
• Storage: 128 MB NAND
• Operating System: RouterOS v7 (License Level 5)
• Ethernet Ports: 8 × 10/100/1000 Mbps
• Combo Port: 1 × 2.5G SFP+/RJ45 combo
• PoE-Out: Yes, on Ether8 (Passive PoE)
• PoE-In: Yes, 802.3af/at or Passive PoE
• Power Input: 24V DC adapter included
• Rackmount Kit: Included (1U ears)
• Dimensions: 272 x 195 x 44 mm
• Operating Temperature: -40°C to +70°C

HIGH-SPEED CONNECTIVITY WITH MIKROTIK L009UIGS-RM WIRED ROUTER

The MIKROTIK L009UIGS-RM WIRED ROUTER is built for fast, modern networking with a dedicated 2.5G SFP+/RJ45 combo port for high-bandwidth uplinks. This port supports both copper and fiber modules, giving you flexibility for fiber backhaul, multi-gigabit NAS, or core switch uplinks.

By offering 2.5 Gigabit throughput, the MIKROTIK L009UIGS-RM WIRED ROUTER ensures your network can scale with increasing data needs in business or home environments.

GIGABIT PERFORMANCE IN MIKROTIK L009UIGS-RM WIRED ROUTER

Equipped with 8 Gigabit Ethernet ports, the MIKROTIK L009UIGS-RM WIRED ROUTER handles wired traffic efficiently across computers, IP phones, access points, or switches. Each port supports full-duplex operation, and Ether8 features passive PoE-out, powering compatible MikroTik or passive PoE devices directly.

This makes the MIKROTIK L009UIGS-RM WIRED ROUTER a strong option for high-speed LAN setups and small business networks needing stable Gigabit connectivity.

POE FLEXIBILITY IN MIKROTIK L009UIGS-RM WIRED ROUTER

The MIKROTIK L009UIGS-RM WIRED ROUTER supports PoE-in on port Ether1 and PoE-out on Ether8, enhancing power flexibility. PoE-in supports both 802.3af/at and passive PoE, allowing you to power the router from an upstream switch or injector. Meanwhile, Ether8 provides passive PoE-out (up to 24V), ideal for powering access points or IP cameras.

This power versatility reduces clutter and simplifies deployment, making the MIKROTIK L009UIGS-RM WIRED ROUTER ideal for rack or edge installs.

ADVANCED ROUTING WITH MIKROTIK L009UIGS-RM WIRED ROUTER AND ROUTEROS V7

Running on RouterOS v7, the MIKROTIK L009UIGS-RM WIRED ROUTER includes an L5 license, supporting powerful features for advanced network control:

• Layer 3 routing (IPv4 & IPv6)
• Advanced firewall and NAT rules
• VLAN support and traffic segmentation
• IPsec, L2TP, and WireGuard VPN
• DHCP, queue management, and routing protocols (BGP, OSPF, RIP)

Whether you're an ISP, business, or enthusiast, the MIKROTIK L009UIGS-RM WIRED ROUTER provides the tools to shape and secure your network.

RACKMOUNT-FRIENDLY DESIGN OF MIKROTIK L009UIGS-RM WIRED ROUTER

Built with installation ease in mind, the MIKROTIK L009UIGS-RM WIRED ROUTER includes 1U rackmount ears and is compact enough to fit into tight spaces. Its low profile and short depth make it perfect for structured wiring cabinets or wall-mounted network enclosures.

The clean form factor and silent operation also make the MIKROTIK L009UIGS-RM WIRED ROUTER ideal for office, retail, or industrial deployments.

HARDWARE PERFORMANCE OF MIKROTIK L009UIGS-RM WIRED ROUTER

Under the hood, the MIKROTIK L009UIGS-RM WIRED ROUTER features a dual-core 880 MHz CPU and 512 MB RAM, more than enough for moderate to heavy network tasks like VPN tunneling, routing, and firewall filtering.

This makes the MIKROTIK L009UIGS-RM WIRED ROUTER highly capable for edge routers, branch offices, or service-provider deployments where performance and reliability are key.

USE CASES FOR MIKROTIK L009UIGS-RM WIRED ROUTER

The MIKROTIK L009UIGS-RM WIRED ROUTER is optimized for:

• Small and medium business networks
• ISP edge or access routers
• High-speed SOHO setups
• Lab environments and home networking enthusiasts
• Remote site installations needing multi-gig uplink

With rich feature support and durable hardware, the MIKROTIK L009UIGS-RM WIRED ROUTER adapts to a wide range of network environments.

WHY CHOOSE THE MIKROTIK L009UIGS-RM WIRED ROUTER?

• Combines 2.5G SFP+/RJ45 with 8 Gigabit ports
• PoE-in and PoE-out for streamlined power management
• Pre-installed RouterOS v7 with L5 license
• Supports advanced VLAN, VPN, and firewall configurations
• Compact 1U rackmount design with ears included
• Fanless and silent for noise-sensitive environments
• High temperature tolerance from -40°C to +70°C
• Suitable for home labs, businesses, and service providers
• Trusted MikroTik reliability at an affordable price point
• Flexible power and uplink options for modern networks
